The magnificent history and diversity of birds on Earth came into sharper focus this month with the publication of 28 new scientific papers in Science and other journals. How birds came to be what they are today — all their dazzling triumphs over time, oblivion, and gravity — is a much more interesting story than most of us had imagined just 20 years ago. (American Flamingo photo by Dick Culbert)

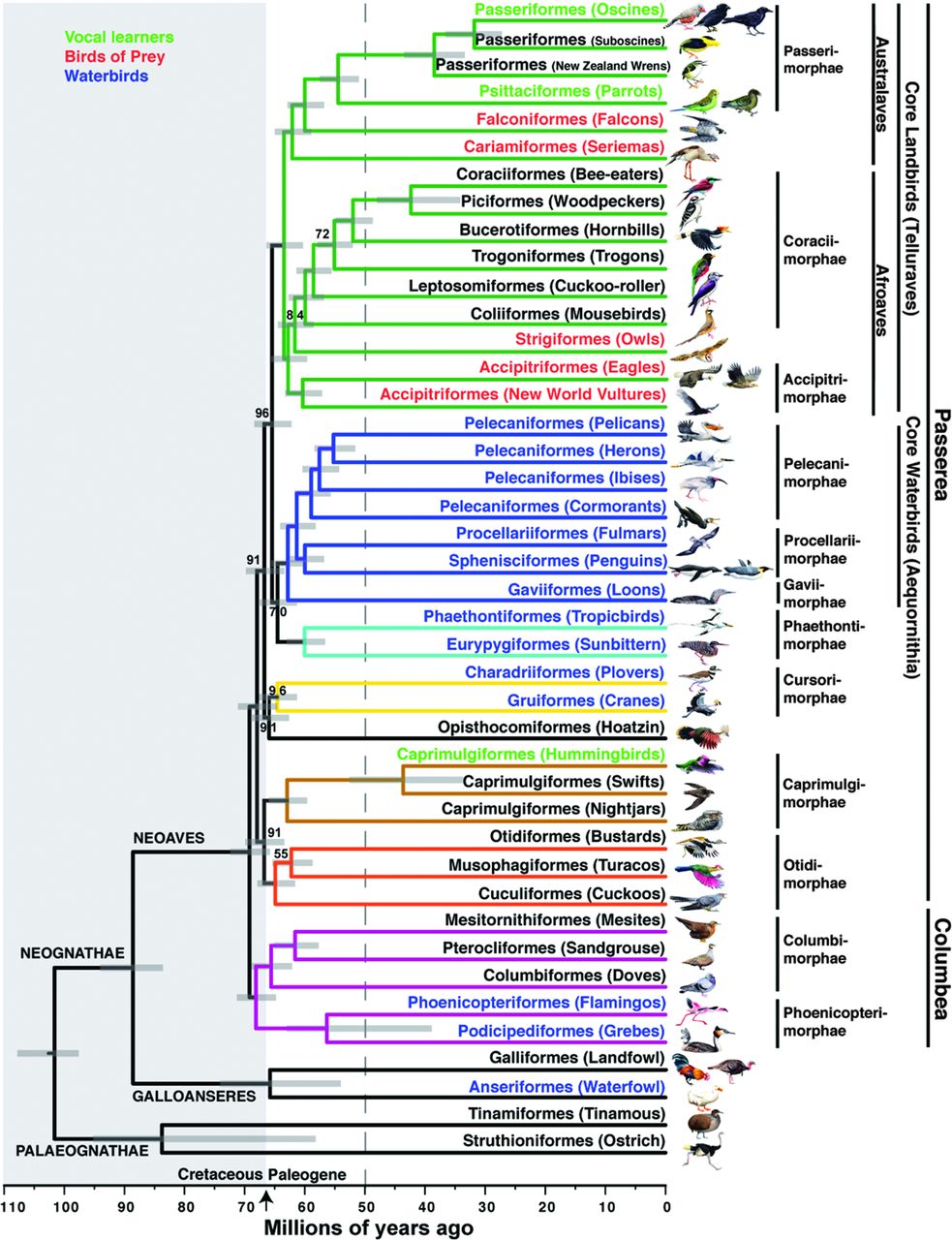

One of the central papers, Whole-genome analyses resolve early branches in the tree of life of modern birds (Jarvis et al. 2014), presents an authoritative framework for our understanding of and future work on bird phylogeny. It confirms many of the once-radical notions put forward or refined by Shannon Hackett and her colleagues in 2008, and several since, and it proposes solutions to some of the most deeply unresolved questions about how major bird groups are related to each other. (See Dr. Erich Jarvis discuss key findings.)
Unlike previous studies that had to rely on, relatively speaking, just a few bits and pieces of DNA, Jarvis et al. processed the entire genomes of 48 bird species and compared nearly 42 million base pairs of DNA (Hackett et al. were revolutionary for using 32,000 base pairs!) in a massive computational effort that — as the authors point out with what I imagine must be glee — would have taken a single computer processor more than 400 years to accomplish.
In mid-2008, Nick Sly published a review of Hackett et al. titled Avian relationships – What do we know? Now it’s late 2014, six and a half years later, and here’s what we know today. Open Jarvis et al.’s bird family tree in a new tab and follow along as you read.
Ratites, Tinamous, and Fowl
The avian ancestors of ratites (the flightless ostriches, emus, kiwis, cassowaries, rheas, and extinct moas and elephant birds) and tinamous stopped interbreeding with the ancestors of all other living birds about 100 million years ago, more or less when Spinosaurus was paddling around North Africa and feathered Deinonychus was running around what’s now the western United States. Tyrannosaurus rex didn’t exist yet. Together, the ratites and tinamous are called paleognaths, and all other living birds are called neognaths, named for differences in their skulls. This divide is the oldest among all living birds.
(l-r) Brushland Tinamou (Nothoprocta cinerascens), Southern Cassowary (Casuarius casuarius), Greater Sage-Grouse (Centrocercus urophasianus), Mandarin Duck (Aix galericulata)
Several recent studies have found that tinamous are embedded within the ratites, which means that either they regained the ability to fly or (as many researchers feel is more likely) that flightlessness and large body size arose multiple times within the paleognaths, a topic discussed in detail at Tetrapod Zoology. We should probably think of birds like kiwis and cassowaries not as “primitive” early birds but as highly specialized birds with many derived traits.
The new 48-genome analysis included only ostrich and tinamou DNA, so it doesn’t shed further light on paleognath interrelationships, but it does reinforce their distinctiveness from all other living birds.
Now we move on to the Neognathae, which also has two very deep branches that lead to all the other living species of birds. Jarvis et al. date the split of those branches to 88 million years ago, well before the extinction event that wiped out all non-bird dinosaurs and many other forms of life about 66 million years ago (the K-Pg boundary).
One of the neognath branches is called Galloanserae and consists today of the the Galliformes or landfowl (megapodes, guans, guineafowl, patridges, pheasants, grouse, turkeys, quail, and relatives) and the specialized aquatic Anseriformes or waterfowl (ducks, geese, swans, and related waterfowl, along with the weird South American screamers). Have you noticed ducks and quail replacing loons and grebes at the beginning of newer bird field guides and checklists? This is why.
One of the other papers released last week identified chickens — of 21 species studied — as having the most similar genome “to the common avian ancestor, probably a bipedal feathered dinosaur” (Romanov et al. 2014). That means that with all the early branching that went on among ancient birds, and everything that has happened since, chickens have undergone the fewest genetic changes. They have conserved features most in common with the ancestors of all birds!
So Galloanserae is one of the neognath branches; the other — the one that contains all other living birds — is called Neoaves. (Are you following along on the tree?)
Determining relationships within Neoaves has been extremely difficult, driving scientists to wrong conclusions (or baffling them completely) for hundreds of years. We thought storks and New World vultures were sister taxa for a hot minute in the ’90s; flamingos used to be classified with other lanky wading birds, while grebes were classified with loons; and for all anyone knew, the Hoatzin was practically as likely to be a highly evolved bovine as anything else.
Why is this? The extinction event that wiped out the pterosaurs, the non-avian dinosaurs, and so much other life created enormous opportunity for new organisms to diversify and thrive (lucky for us placental mammals!), and scientists had been coming to the conclusion that Neoaves was the product of a rapid burst of speciation during this period that obscured evolutionary relationships: in short, that birds were too busy living — eating, being eaten, experimenting, dispersing, and repopulating the world — to leave behind enough clues in stone or in their DNA, at least what we’d been able to analyze so far.
Jarvis et al. also found evidence of an “an explosive diversification within Neoaves … around the K-Pg boundary,” an explosion that lasted about 15 million years, and — by virtue of their whole-genome approach — researchers were able to make significant progress in untangling the story of what happened just before and during that exceptional period in the history of life on Earth.
Columbea: Doves to Flamingos
Here’s where things get really interesting.
(clockwise from top left) Western Crowned-Pigeon (Goura cristata), Subdesert Mesite (Monias benschi), Pin-tailed Sandgrouse (Pterocles alchata), Greater Flamingo (Phoenicopterus roseus), Eared (Black-necked) Grebe (Podiceps nigricollis)
Jarvis et al. found that the Neoaves split in two just before the K-Pg boundary, and they named the groups Columbea and Passerea. Columbea is the smaller of the two, and it contains several previously difficult-to-place groups. For study coauthor Dr. John McCormack, the recovery of this group was an exciting and unexpected result: “The big surprise,” he told me in an email, “was the flamingo-grebe clade being sister to the pigeon-sandgrouse-mesite clade, and then this larger clade being sister to all other Neoaves.”
He continued: “It suggests a deep split in modern birds with two parallel waterbird and landbird radiations — in fact three parallel radiations if you consider the split between waterfowl and landfowl.”
Let that sink in. Birds didn’t just adapt to swimming and wading or various terrestrial habits once, they did it over and over again.
The Columbea-Passerea proposal supersedes an earlier hypothesis that identified clades called Metaves and Coronaves. “Metaves” was purported to contain the groups in Jarvis et al.’s Columbea and a few other taxa, but it was never well supported. Columbea now looks like the hypothesis to beat — or to confirm. “I think the sister relationship between the flamingo-grebe clade and the pigeon-sandgrouse-mesite clade is going to need further corroboration from targeted analysis before people really start to accept it,” Dr. McCormack told me. “That’s fair.”
Cuckoos to Hummingbirds
The sister group to Columbea is Passerea, which contains all other living birds not already discussed. Within Passerea, the first branch contains sister clades: a novel cuckoo-bustard-turaco group and then a night bird-swift-hummingbird group.
(clockwise from top left) Common Cuckoo (Cuculus canorus), Kori Bustard (Ardeotis kori), Hartlaub’s Turaco (Tauraco hartlaubi), Green Thorntail (Discosura conversii), Common Nighthawk (Chordeiles minor), Oilbird (Steatornis caripensis)
Cuckoos were found to be sister to bustards and turacos. It’s an intriguing proposal — none of these birds had belonged much of anywhere before (heck, bustards were dumped in Gruiformes with cranes and rails) — and it means that birds adapted either to arboreal or to ground-dwelling lifestyles more than once within the clade. Cuckoos have both highly arboreal and firmly terrestrial species, while the turacos are primarily jungle tree-dwellers and bustards live on the ground in open country.
Sister to this group is the Strisores: the “night birds” (excluding owls), swifts, and hummingbirds. While these groups were once considered two orders (Caprimulgiformes and Apodiformes), recent work (summarized in Mayr 2010) shows that swifts and hummingbirds emerged from within the night birds. The Oilbird, potoo, and frogmouth lineages are old and distinctive. A study earlier this year even hinted that the Oilbird may have diverged from other members of its clade before the K-Pg boundary, but that doesn’t seem to jibe with Jarvis et al. (though the confidence intervals don’t seem to rule it out entirely, either, as far as I can tell). In any case, these are very old branches.
The position of Strisores relative to all other bird groups is important for a reason you might not expect, and it has to do with hummingbirds. Hummingbirds have an ability that’s rare in nature: They learn their vocalizations. So do parrots, some songbirds, humans, and a few other mammals. Where do these abilities come from?
Papers on vocal learning in birds and mammals were part of the package released last week, and they paint a picture that’s absolutely amazing: “… convergent neural circuits for vocal learning are accompanied by convergent molecular changes of multiple genes in species separated by millions of years from a common ancestor…” (Pfenning et al. 2014).
See what just happened there? Humans don’t share merely a similar capacity for vocal learning with hummingbirds, we share share similar brain machinery, and that brain machinery is regulated by similar genes, genes not shared by hummingbirds’ closest relatives, nor by ours.
We know that morphological features, like webbed feet for swimming, can evolve independently (and we’re learning that this sort of convergent evolution is more common than we thought in birds, as already discussed above), but now we’re also learning that genes can evolve convergently as well. I asked Dr. Jarvis on Twitter whether I was understanding this correctly.
“Yes,” he tweeted back. “Not only that, some of the convergent genes can be responsible for the convergent morphological features.”
Here are two other tweets on the topic. Follow him on Twitter — he’s regularly tweeting great highlights from the research project.
A Home for the Hoatzin?
(l-r) Hoatzin (Opisthocomus hoazin), Gray Crowned-Crane (Balearica regulorum), Wattled Lapwing (Vanellus senegallus)
OK, if you’re still following along on the tree, the next branch we reach is a novel proposal: Hoatzin as sister to Charadriiformes and Gruiformes. The Hoatzin, which may have reached South America by raft, has resisted placement in basically every study ever done. So now that its whole genome has been sequenced and the bootstrap values for placement as sister to cranes and plovers are relatively strong, does it finally have a home?
Dr. McCormack is cautiously optimistic. “I wouldn’t put it past the hoatzin to throw another curveball at us,” he told me, “but I’m starting to believe its position might be settling down with the shorebirds and cranes. At the very least, I think we can reject some hypotheses like the link to cuckoos.”
It’s also worth noting here that the Gruiformes of today is different from that of a decade or two ago. It’s smaller, restricted to the trumpeters, Limpkin, cranes, finfoots, flufftails, and rails, coots, and gallinules. Other taxa stuffed in Gruiformes at various points through history — Kagu, Sunbittern, mesites, buttonquail, seriemas, bustards, and others — are now distributed throughout the entirety of the Neoaves.
Charadriiformes is a successful, widespread group of birds that includes the plovers and sandpipers, gulls and terns, skuas, alcids (or auks, if you prefer), and many other smaller but very interesting groups, from seedsnipes to sheathbills.
Tropicbirds + Kagu and Sunbittern
(l-r) White-tailed Tropicbird (Phaethon lepturus), Sunbittern (Eurypyga helias), Kagu (Rhynochetos jubatus)
The world’s three pelagic tropicbird species were long lumped with pelicans and cormorants because of their totipalmate feet (all four toes, not just three, are webbed), but it’s become clear in recent years that they don’t belong there at all (nor are pelicans and cormorants all that closely related, but more on that in a moment). Meanwhile, New Caledonia’s Kagu and the South American Sunbittern, neither strong fliers, were plucked from Gruiformes and identified as sister taxa, but where they fit relative to other birds was unknown. Two years ago, McCormack et al. found evidence that these five odd birds might be each other’s closest relatives.
And the new whole-genome study lends strong support to this relationship (dubbing the clade “Phaethontimorphae”), and places the group (with somewhat less certainty) as sister to the “core waterbirds,” which are up next.
From here, the rest of the Neoaves is divided into two large sister groups: core waterbirds (plus Phaethontimorphae) and core landbirds.
(clockwise from top left) Common Loon (Gavia immer), Emperor Penguin (Aptenodytes forsteri), Black-footed Albatross (Phoebastria nigripes), Brown Pelican (Pelecanus occidentalis), White Ibis (Eudocimus albus), Marabou Stork (Leptoptilos crumeniferus), Pied Cormorant (Phalacrocorax varius)
This major radiation of water-adapted birds includes loons, penguins, and the remarkable tubenoses along with a variety of totipalmate and wading birds. Some are highly aerial, capable of staying aloft for days or weeks at a time; penguins have given up flight altogether to become efficient wing-propelled swimmers. The new tree confirms Hackett et al.’s placement of foot-propelled loons as basal to the whole group and penguins and tubenoses as sister taxa. The divisions among these lineages arose during the rapid speciation event following the K-Pg boundary, so these birds are more closely related to each other than to anything else but hardly “close” relatives.
Relationships among the totipalmate and wading birds are still being sorted out, and Jarvis et al. did not include enough taxa to resolve some of the lingering questions, such as where storks fit. Frigatebirds, gannets and boobies, cormorants, and darters form a well-supported Suliformes. Pelicans are separate but are related to Hamerkop and Shoebill, and that group is related to herons and ibises. Herons and ibises may or may not be sisters, and storks may be basal to the whole pelecanimorph assemblage, or to the herons. Jarvis et al. didn’t sample enough taxa to resolve these questions, so the deep relationships among these groups will need further work.
The last major section of the tree — and the one that contains a majority of all living bird species — is the core landbirds, and it further divides into two sister clades, Australaves and Afroaves. Jarvis et al. confirm the last decade’s worth of work showing birds with raptorial traits are scattered throughout the landbird clade and propose that the ancestor of this entire clade was a bird of prey:
The non-monophyly of the birds of prey at the deepest branches of the Australaves and Afroaves radiations suggests that the common ancestor of core landbirds may have been an apex predator, followed by two losses of the raptorial trait. Seriema at the deepest branch of Australaves could be considered to belong to a raptorial taxon because they kill vertebrate prey and are the sole living relatives of the extinct giant “terror birds,” apex predators during the Paleogene. The deepest branches after Accipitriformes and owl among the Afroaves, the mousebirds and cuckoo-roller, have Eocene relatives with raptor-like feet, and the cuckoo-roller specializes on chameleon prey. This suggests that losses of the predatory phenotype were gradual across successive divergences of each of the two core landbird radiations. (Jarvis et al. 2014)
top: Turkey Vulture (Cathartes aura), bottom: Osprey (Pandion haliaetus)
“New World” vultures (in scare quotes because they have fossil relatives from the Old World) and hawks (including Osprey and Secretarybird but, importantly, not falcons) are sister taxa and split off from other members of the Afroaves clade early on. It looks as though “New World” vultures are sister to hawks and eagles after all, not anything stranger or more exotic (and certainly not storks).
With the basal raptors out of the way, the rest of the Afroaves tree looks like this: owls, mousebirds, Cuckoo-Roller, trogons, hornbills, Piciformes (jacamars and puffbirds, toucans and barbets, honeyguides, and woodpeckers), and Coraciiformes (bee-eaters, ground-rollers, rollers, todies, motmots, and kingfishers).
(clockwise from top left) Brown Wood-Owl (Strix leptogrammica), Speckeld Mousebird (Colius striatus), Cuckoo-Roller (Leptosomus discolor), Lilac-breasted Roller (Coracias caudatus), Yellow-throated Woodpecker (Piculus flavigula), Malabar Pied Hornbill (Anthracoceros coronatus), Lattice-tailed Trogon (Trogon clathratus)
Even in the with full-genome analysis, owls posed a bit of a problem, which the authors attribute to the rapid diversification following the K-Pg boundary. However, they note that the irresolution is “local” (i.e., owls belong in this general vicinity in the tree, not somewhere wildly different), so perhaps future work can more accurately resolve the placement of owls relative to mousebirds and the other Afroaves, but it seems that these challenging groups (including the Cuckoo-Roller) are finally settling down.
The most important result in the Trogoniformes through Coraciiformes section of the tree is further confirmation that these birds are not exactly “near passerines” as once thought — passerines are more closely related to three other groups of birds.
Australaves: Songbirds and Their Kin
Eight years ago, Ericson et al. shocked everyone with a suggestion that passerines were most closely related not to woodpeckers and kingfishers but to parrots, falcons, and seriemas. Hackett et al. found the same thing, and then Suh et al., and others, and now the full-genome study gives a resounding affirmation to the whole thing.
(clockwise from top left) Red-legged Seriema (Cariama cristata), American Kestrl (Falco sparverius), Prothonotary Warbler (Protonotaria citrea), Strong-billed Woodcreeper (Xiphocolaptes promeropirhynchus), Rainbow Lorikeet (Trichoglossus haematodus)
Passerines and parrots are sister clades, falcons are sister to those two, and seriemas (and the extinct terror birds) are sister to all three, which takes the imagination on flights of all sorts of fancy. Importantly, parrots and many songbirds (the oscine passerines) are vocal learners, like us and like hummingbirds. This ability arose at least twice among birds — once in the hummingbird ancestor and at least once in this clade. Is the ability something that parrots and oscines share, or did it arise more than once? It’s not clear:
Our tree lends support for either three independent gains of vocal learning or two gains (hummingbirds and the common ancestor of parrots and oscine songbirds) followed by two losses (in New Zealand wrens and suboscines). However, a single origin for parrots and oscines followed by two losses (three events) is not much less parsimonious than independent origins in parrots and oscines (two events). In addition, the suboscine Procnius bellbirds have recently been shown to be vocal learners, suggesting that there could have been a fourth gain or a regain after a loss of vocal learning in other suboscines. (Jarvis et al. 2014)
Passerines are roughly half of all living birds; their own tree is quite complex, with many questions still unresolved. Parrots are still getting sorted out too. But that’s all beyond the scope of the whole-genome studies released this month, and of this post. Perhaps I’ll tackle passerines on some other occasion.
Meanwhile, we have a robust new tree to help us understand bird diversity, and the technical accomplishments pioneered in this project will influence future work significantly. Some of our longstanding questions now have really fascinating answers, and if others are still open or if new ones have been raised, we now have greater knowledge and freer imaginations with which to pursue them.
So if you need me, I’ll just be over here thinking about doves and flamingos, parrots and falcons, hummingbird brains and our own. I might be awhile.
